# Observability Stack — Prometheus, Grafana, Loki on Incus

A lightweight observability stack deployed as Incus containers on the lab
cluster. Provides metric collection (Prometheus), dashboards (Grafana),
and log aggregation (Loki) for Incus nodes, HAProxy load balancers, and
host-level resources.

The stack runs entirely on OVN and is managed by the `deploy-observability`
script. Cluster nodes are **auto-discovered** — the script queries
`incus cluster list` to find nodes, eliminating hardcoded IPs. All
containers use the `monitoring-allow` ACL to permit scrape traffic on the
shared network.

## Architecture

```mermaid
flowchart TD
    lan(["LAN 192.168.103.0/24"])

    subgraph fwd["OVN Forward · 192.168.103.201"]
        fwd_grafana[":3000 → Grafana"]
        fwd_prom[":9090 → Prometheus"]
    end

    subgraph mon["monitoring · 10.10.10.70 · oc-node-02"]
        prometheus["Prometheus :9090"]
        grafana["Grafana :3000"]
        loki["Loki :3100<br/>gRPC :9096"]
        promtail["Promtail"]
    end

    subgraph targets["Scrape Targets (auto-discovered)"]
        incus["Incus nodes :8443<br/>auto-discovered from cluster"]
        haproxy["HAProxy :8404<br/>.50 · .51"]
        ne["node-exporters :9100<br/>one per cluster node (OVN)"]
    end

    subgraph ocserver["oc-server (optional, --oc-server)"]
        oc_incus["Incus API :8443<br/>192.168.102.120"]
        oc_ne["node-exporter :9100<br/>proxy device on host IP"]
    end

    lan --> fwd
    fwd --> mon
    prometheus -->|"client cert"| incus
    prometheus --> haproxy
    prometheus --> ne
    prometheus -->|"client cert"| oc_incus
    prometheus --> oc_ne

    classDef external fill:#f5f5f5,color:#333,stroke:#999
    classDef network fill:#0072B2,color:#fff,stroke:#005a8e
    classDef mgmt fill:#CC79A7,color:#fff,stroke:#a36088
    classDef instance fill:#56B4E9,color:#fff,stroke:#3a8fbf
    classDef node fill:#009E73,color:#fff,stroke:#007a5e

    class lan external
    class fwd_grafana,fwd_prom network
    class prometheus,grafana,loki,promtail mgmt
    class incus,haproxy,ne instance
    class oc_incus,oc_ne node

    style fwd fill:#e0eef8,stroke:#0072B2
    style mon fill:#f5e6f0,stroke:#CC79A7
    style targets fill:#e0f2fe,stroke:#56B4E9
    style ocserver fill:#e0f5ed,stroke:#009E73
```

## Components

### Prometheus 2.54

Metric collection engine. Scrapes all targets at a 15-second interval.

- Stores metrics locally in the monitoring container
- Client certificate authentication for Incus `/1.0/metrics` endpoints
  (uses cluster client cert + key)
- Plain HTTP scrape for HAProxy stats (`:8404/metrics`) and
  node-exporters (`:9100/metrics`)

### Grafana 12.4

Dashboard and visualization frontend.

- Default credentials: `admin` / `admin`
- Pre-provisioned datasources for Prometheus and Loki
- Nine dashboards deployed automatically (see Dashboards section)
- Accessible from LAN via OVN network forward

### Loki 3.6

Log aggregation backend.

- HTTP API on port 3100
- gRPC on port **9096** (not the default 9095 -- avoids conflict with
  Promtail's own metrics port)
- 7-day retention policy
- Receives logs from Promtail running in the same container

### Promtail 3.6

Log shipping agent, co-located with Loki in the monitoring container.

- Pushes logs to Loki via gRPC on localhost:9096
- Scrapes container logs and system journal

### node_exporter

Host-level metrics via privileged Alpine containers.

- One container per cluster node, auto-discovered and pinned with `--target`
- Privileged containers with host filesystem bind-mounts:
  - `/proc` (host) -> `/host/proc` (read-only)
  - `/sys` (host) -> `/host/sys` (read-only)
  - `/` (host) -> `/host/root` (read-only)
- Configured via `/etc/conf.d/node-exporter` with `ARGS="--path.procfs=/host/proc
  --path.sysfs=/host/sys --path.rootfs=/host/root"` (Alpine's init script reads
  the `ARGS` variable, not `NODE_EXPORTER_OPTS`)
- Exposes standard node_exporter metrics on `:9100`
- Uses `monitoring-allow` ACL for network access
- Optional: oc-server gets its own node-exporter with a proxy device
  exposing `:9100` on the host IP (since oc-server uses incusbr0, not OVN)

## Access

| Service | URL | Credentials |
|---------|-----|-------------|
| Grafana | http://192.168.103.201:3000 | `admin` / `admin` |
| Prometheus | http://192.168.103.201:9090 | None (open) |

Both services are accessible from the LAN through an OVN network forward
on IP `192.168.103.201`. The forward maps external ports directly to the
monitoring container's internal ports (no translation).

Prometheus and Loki are not exposed externally by default. They are
accessible only from within the OVN network or through the Grafana
datasource proxy.

## Dashboards

Nine dashboards are provisioned automatically during deployment, organized
into four Grafana folders. All dashboards support template variables for
filtering and include cross-dashboard navigation links.

Use `manage-dashboards` to install, export, validate, or list dashboards:

```bash
incusos/manage-dashboards --install     # push all dashboards to Grafana
incusos/manage-dashboards --list        # show install status
incusos/manage-dashboards --validate    # check JSON quality
incusos/manage-dashboards --export      # export from Grafana to clean JSON
incusos/manage-dashboards --status      # compare local vs installed
```

### Incus Cluster — Incus Cluster Overview

Overview of all instances with instance/node template variables.

- Instance count, total CPUs, total memory, cluster memory utilization gauge
- Instance status table with drill-down links to Instance Deep Dive
- Per-instance CPU usage, active memory, memory usage % bar gauge
- Network receive/transmit rates, disk read/write rates

![Cluster Overview](../screenshots/cluster-overview.png)
*Cluster-wide view showing 8 instances across 3 nodes with 28 total CPUs,
20.4 GiB total memory, cluster memory utilization gauge, and the instance
status table with per-instance drill-down links.*

### Incus Cluster — Instance Deep Dive

Single-instance drill-down selected via template variable.

- Processes, effective CPUs, total memory, memory utilization gauge
- CPU usage over time with gradient color scheme
- Active memory and memory utilization % over time
- Network traffic (receive above axis, transmit below on same panel)
- Disk read/write rates

![Instance Deep Dive](../screenshots/instance-deep-dive.png)
*Deep dive into workload-web showing 11 processes, 4 effective CPUs, 128 MiB
total memory, and per-metric time series for CPU, memory, network, and disk.*

### Incus Services — HAProxy Traffic

HAProxy monitoring with proxy/server template variables.

- Active servers, current sessions, HTTP request rate
- HTTP 4xx/5xx rate stat panels with warning thresholds
- Response code distribution (stacked, color-coded by class)
- Backend status table and server status state timeline
- Frontend traffic, sessions by proxy, response times
- Queue time and connection errors

![HAProxy Traffic](../screenshots/haproxy-traffic.png)
*HAProxy dashboard showing panel layout. Panels display "No data" when
HAProxy instances are not deployed or their stats endpoints are unreachable.*

### Incus Infrastructure — Host Resources (IncusOS Nodes)

Physical host monitoring with node template variable.

- System information table (kernel, uptime, RAM, CPU count)
- CPU usage % and CPU mode breakdown (user/system/iowait/idle stacked)
- Load average (1m/5m/15m) with CPU count threshold line
- Memory usage % and memory breakdown (used/buffers/cached/available)
- Filesystem usage % bar gauge, IOPS, disk I/O time
- Network traffic by device, network errors and drops

![Host Resources](../screenshots/host-resources.png)
*Host-level metrics from node-exporter showing system info (19.5 GiB RAM per
node, kernel version, boot time), CPU usage/mode breakdown, load average, and
memory utilization for all 3 auto-discovered IncusOS nodes.*

### Incus Infrastructure — Storage & Filesystem

Filesystem and disk I/O with node/mountpoint template variables.

- Filesystem usage table with color-coded Used % column
- Available space trend over time
- Disk read/write throughput by device
- Average read/write latency, disk utilization %
- Inode usage % bar gauge

![Storage & Filesystem](../screenshots/storage-filesystem.png)
*Storage dashboard showing filesystem usage table, available space trends,
disk throughput, and I/O latency across all cluster nodes.*

### Incus Infrastructure — Network Deep Dive

Network metrics with node/device template variables.

- Cluster ingress/egress/errors/drops summary stats
- Per-node per-device receive/transmit rates
- Instance-level network traffic (Incus `incus_network_*` metrics)
- Receive/transmit errors and packet drops

![Network Deep Dive](../screenshots/network-deep-dive.png)
*Network dashboard with cluster-wide ingress/egress stats, per-node traffic
breakdown by device, and instance-level network rates for all 8 instances.*

### Incus Operations — Logs Explorer

Log exploration powered by Loki with job/host/unit/search variables.

- Log volume over time (stacked by job)
- Full log stream with search filtering
- Error rate and warning rate by systemd unit

![Logs Explorer](../screenshots/logs-explorer.png)
*Log exploration showing systemd journal and varlog streams, live log entries
with labels and severity highlighting, and error/warning rates by unit.*

### Interactive Log Exploration (Logs Drilldown)

For deeper investigation beyond the Logs Explorer dashboard, Grafana's
**Logs Drilldown** plugin provides a VMware LogInsight-style interactive
experience — no LogQL knowledge required.

Access it from the **Drilldown > Logs** menu in Grafana's left sidebar, or
via the **Logs Drilldown** link at the top of the Logs Explorer dashboard.

**What it provides:**

- **Service-based browsing** — automatically discovers all log-producing
  services and shows them with volume sparklines and log previews
- **Automatic field discovery** — surfaces all label fields (service, level,
  unit, host) as interactive facets for filtering
- **Volume-based drill-down** — click into time ranges on the volume chart
  to narrow focus to specific incidents
- **Pattern detection** — groups log lines by structure, revealing recurring
  patterns and anomalies without writing queries
- **Severity filtering** — filter by log level (info, warn, error) using the
  enriched `level` label from Promtail's journal scrape

**Logs Explorer dashboard vs Logs Drilldown:**

| | Logs Explorer Dashboard | Logs Drilldown |
|---|---|---|
| Purpose | Overview and monitoring | Investigation and debugging |
| Interface | Pre-built panels with template variables | Interactive, queryless exploration |
| Filtering | Select job/host/unit from dropdowns | Click any field value to filter |
| Pattern analysis | Manual (requires LogQL) | Automatic pattern grouping |
| Best for | "What's happening now?" | "Why did this break?" |

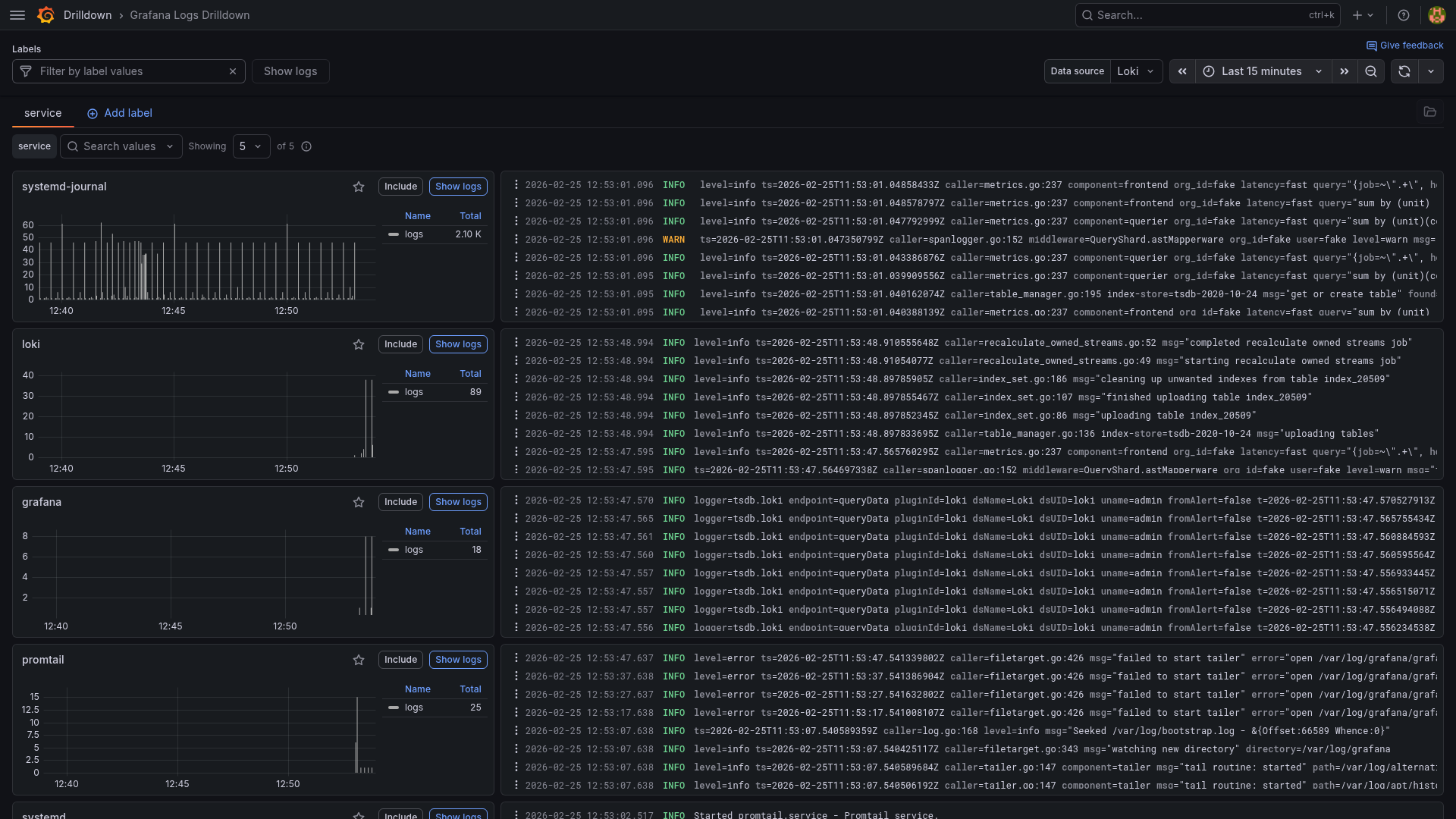

![Logs Drilldown](../screenshots/logs-drilldown.png)
*Logs Drilldown showing automatic service discovery with volume sparklines,
log previews with severity highlighting, and the "Add label" faceted filter
bar for queryless exploration.*

### Incus Operations — Prometheus Health

Prometheus self-monitoring (no template variables).

- Targets up/down, average scrape duration, samples ingested/s
- Target health table with UP/DOWN status
- Scrape duration and samples scraped by job
- TSDB size, head series, head chunks, WAL size
- TSDB size trend, samples ingested trend, compactions

![Prometheus Health](../screenshots/prometheus-health.png)
*Prometheus self-monitoring showing 7 targets UP (3 Incus nodes, 3
node-exporters with friendly names, 1 self), 2 DOWN (HAProxy not deployed),
scrape duration by job, and samples scraped.*

### Incus Operations — Capacity Planning

Resource planning with 7-day default time range (no template variables).

- CPU and memory headroom per node (inverted bar gauges)
- CPU and memory usage trends (7-day)
- Disk space forecast with 30-day `predict_linear` projection
- Instance count trend, memory allocation vs active memory per instance

![Capacity Planning](../screenshots/capacity-planning.png)
*Capacity planning with CPU/memory headroom bars per node, 7-day CPU and
memory usage trends, and 30-day disk space forecast using predict_linear.*

## ACL Configuration

Aether automatically creates per-instance ACLs with default-deny rules
for all containers on shared OVN networks. The observability stack needs
careful ACL configuration to allow scrape traffic.

### How Aether ACLs work

When Aether deploys a container, it creates ACLs with reject rules:

| Direction | Priority | Action | Effect |
|-----------|----------|--------|--------|
| Egress | 111 | reject | Blocks all outbound by default |
| Ingress | 100 | reject | Blocks all inbound by default |

These are OVN ACL rules enforced at the logical switch port level.

### monitoring-allow ACL

The observability containers use a `monitoring-allow` ACL with
`default.*.action=allow` set on all directions. This creates allow rules
at **priority 111** which matches or exceeds the Aether reject rules,
effectively overriding the default-deny policy.

All observability containers (monitoring, node-exp-01/02/03) have this
ACL applied.

### HAProxy scrape access

HAProxy containers are managed by Aether and have their own ACLs with
default-deny. For Prometheus to scrape HAProxy metrics on `:8404`, the
HAProxy Aether ACLs need **explicit ingress rules** allowing TCP traffic
from the monitoring container (10.10.10.70) to port 8404.

Without this, Prometheus targets for HAProxy will show as DOWN.

### NIC state after ACL changes

Changing `security.acls` on a container NIC can cause the NIC to go
**down**. After modifying ACLs, you may need to bring the NIC back up
manually or restart the container.

## Resource Budget

Node-exporter containers are auto-discovered from the cluster — one per node.

| Container | Image | RAM | Disk | Placement |
|-----------|-------|-----|------|-----------|
| monitoring | Debian/12 | 2 GiB | 20 GiB | oc-node-02 |
| node-exp-01 | Alpine | 128 MiB | — | oc-node-01 |
| node-exp-02 | Alpine | 128 MiB | — | oc-node-02 |
| node-exp-03 | Alpine | 128 MiB | — | oc-node-03 |

**OC server monitoring** (optional, deployed via `--oc-server`):

| Container | Image | RAM | Placement | Notes |
|-----------|-------|-----|-----------|-------|
| node-exp-oc-server | Alpine | 128 MiB | oc-server | Proxy device exposes :9100 on host IP |

**Dummy workloads** (optional, deployed via `--workloads`):

| Container | Image | RAM | Placement | Purpose |
|-----------|-------|-----|-----------|---------|
| workload-web | Alpine | 128 MiB | oc-node-01 | nginx + CPU/disk/network crons |
| workload-api | Alpine | 128 MiB | oc-node-03 | Python HTTP + memory sawtooth |

**Totals:**
- RAM: ~2.4 GiB core (2 GiB + 3 x 128 MiB), +128 MiB with oc-server, +256 MiB with workloads
- Disk: 20 GiB (only the monitoring container needs significant storage)
- OVN forward IPs: 1 (192.168.103.201)
- OVN network IPs: 4 core (10.10.10.70-73), +2 with workloads (.80, .81)

## Management

The `deploy-observability` script handles the full lifecycle. Cluster nodes
are **auto-discovered** from `incus cluster list` — no hardcoded IPs needed.

### Deploy the stack

```bash
incusos/deploy-observability --deploy
```

Auto-discovers cluster nodes, creates the monitoring container and one
node-exporter per node, installs and configures Prometheus, Grafana,
Loki, and Promtail, provisions dashboards, sets up the OVN network
forward, and configures ACLs.

To also monitor the standalone OC management server:

```bash
incusos/deploy-observability --deploy --oc-server 192.168.102.120
```

This deploys an additional node-exporter on oc-server with a proxy device
to expose `:9100` on the host IP (since oc-server uses incusbr0, not OVN).
Requires an `oc-server` Incus remote — the script provides `incus remote add`
instructions if it's missing.

To override auto-discovery with a manual node list:

```bash
incusos/deploy-observability --deploy --nodes oc-node-01,oc-node-02,oc-node-03
```

### Deploy dummy workloads

```bash
incusos/deploy-observability --workloads
```

Deploys two lightweight containers that generate varied metric patterns:

- **workload-web** (10.10.10.80, oc-node-01): nginx serving static
  content, cron jobs generating HTTP traffic (every minute), CPU spikes
  via gzip (every 5 min), and disk I/O bursts via dd (every 15 min).
- **workload-api** (10.10.10.81, oc-node-03): Python HTTP server on
  port 8080, cron jobs for inter-container traffic (every 2 min) and
  memory sawtooth via 20 MiB allocation/release (every 10 min).

### Check status

```bash
incusos/deploy-observability --status
```

Shows the state of all containers (including workloads if deployed),
scrape target health, Grafana accessibility, and OVN forward
configuration.

### Clean up

```bash
incusos/deploy-observability --cleanup
```

Removes all observability containers, the OVN network forward, and
associated ACLs. Does not affect monitored targets (Incus nodes,
HAProxy).

### Health check

```bash
incusos/deploy-observability --doctor
```

Verifies prerequisites, checks container health, validates Prometheus
targets are UP, confirms Grafana datasources are working, and reports
any ACL issues.

## Troubleshooting

### Targets show as DOWN in Prometheus

1. Check ACL rules on the target containers. Aether's default-deny ACLs
   block all ingress including Prometheus scrapes.
2. Verify the NIC is up. Changing `security.acls` can bring the NIC down.
   Check with `incus exec <container> -- ip link` and bring it up if needed.
3. For Incus node targets: verify the client certificate and key are
   correctly placed in the Prometheus config directory and that the cert
   is trusted by the cluster.

### Grafana can't reach Prometheus

Check that Prometheus is running and listening on localhost:9090 from
inside the monitoring container:

```bash
incus exec monitoring -- curl -s http://localhost:9090/-/healthy
```

If Prometheus is not running, check its service status:

```bash
incus exec monitoring -- systemctl status prometheus
```

### No node metrics (or RAM shows 128 MiB)

1. Verify the node-exporter containers are running and privileged:
   ```bash
   incus list node-exp
   ```
2. Check that host filesystem mounts are in place:
   ```bash
   incus exec node-exp-01 -- ls /host/proc/stat
   ```
3. Verify node_exporter is running with host path flags:
   ```bash
   incus exec node-exp-01 -- ps aux | grep node_exporter
   # Should show: --path.procfs=/host/proc --path.sysfs=/host/sys --path.rootfs=/host/root
   ```
4. If flags are missing, check `/etc/conf.d/node-exporter` uses `ARGS=`
   (not `NODE_EXPORTER_OPTS=`). Alpine's init script reads the `ARGS`
   variable:
   ```bash
   incus exec node-exp-01 -- cat /etc/conf.d/node-exporter
   # Should show: ARGS="--path.procfs=/host/proc ..."
   ```
5. Verify node_exporter is listening:
   ```bash
   incus exec node-exp-01 -- wget -qO- http://localhost:9100/metrics | head
   ```

### HAProxy metrics show as invalid or empty

HAProxy needs the `prometheus-exporter` service enabled in its stats
configuration. The stats section in `haproxy.cfg` must include:

```
frontend stats
    bind *:8404
    http-request use-service prometheus-exporter if { path /metrics }
    stats enable
    stats uri /stats
```

Without the `use-service prometheus-exporter` directive, the `/metrics`
path returns HTML stats instead of Prometheus-format metrics.

### Loki not receiving logs

Verify Promtail can reach Loki on the gRPC port:

```bash
incus exec monitoring -- curl -s http://localhost:3100/ready
```

Note that Loki uses gRPC port **9096** in this deployment (not the
default 9095) to avoid conflicts with Promtail's metrics port.
